JEDI NOVA 55 PROJECTOR

JEDI NOVA 55 PROJECTOR

Downloads

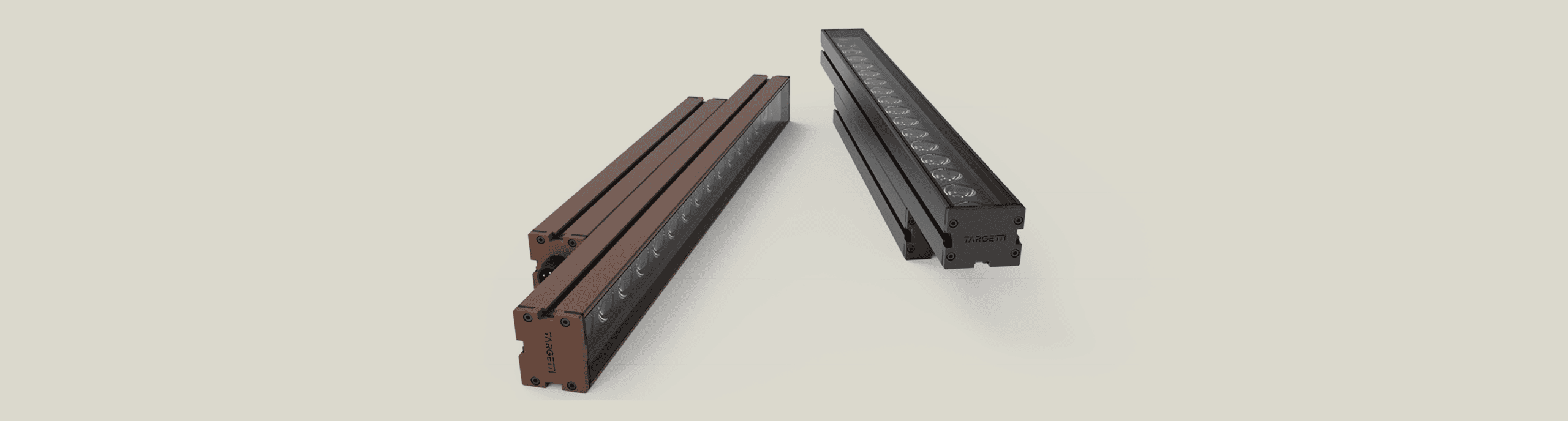

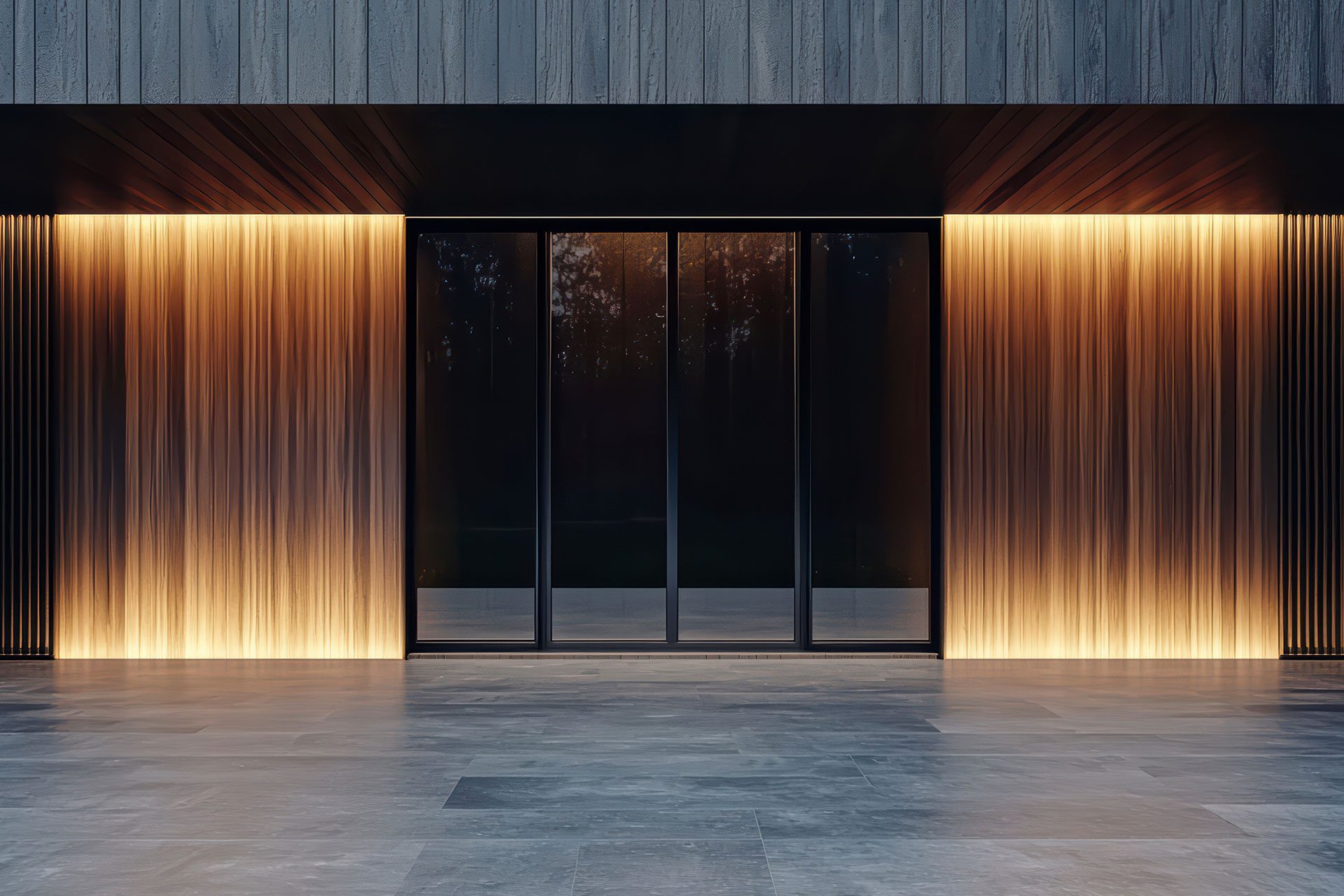

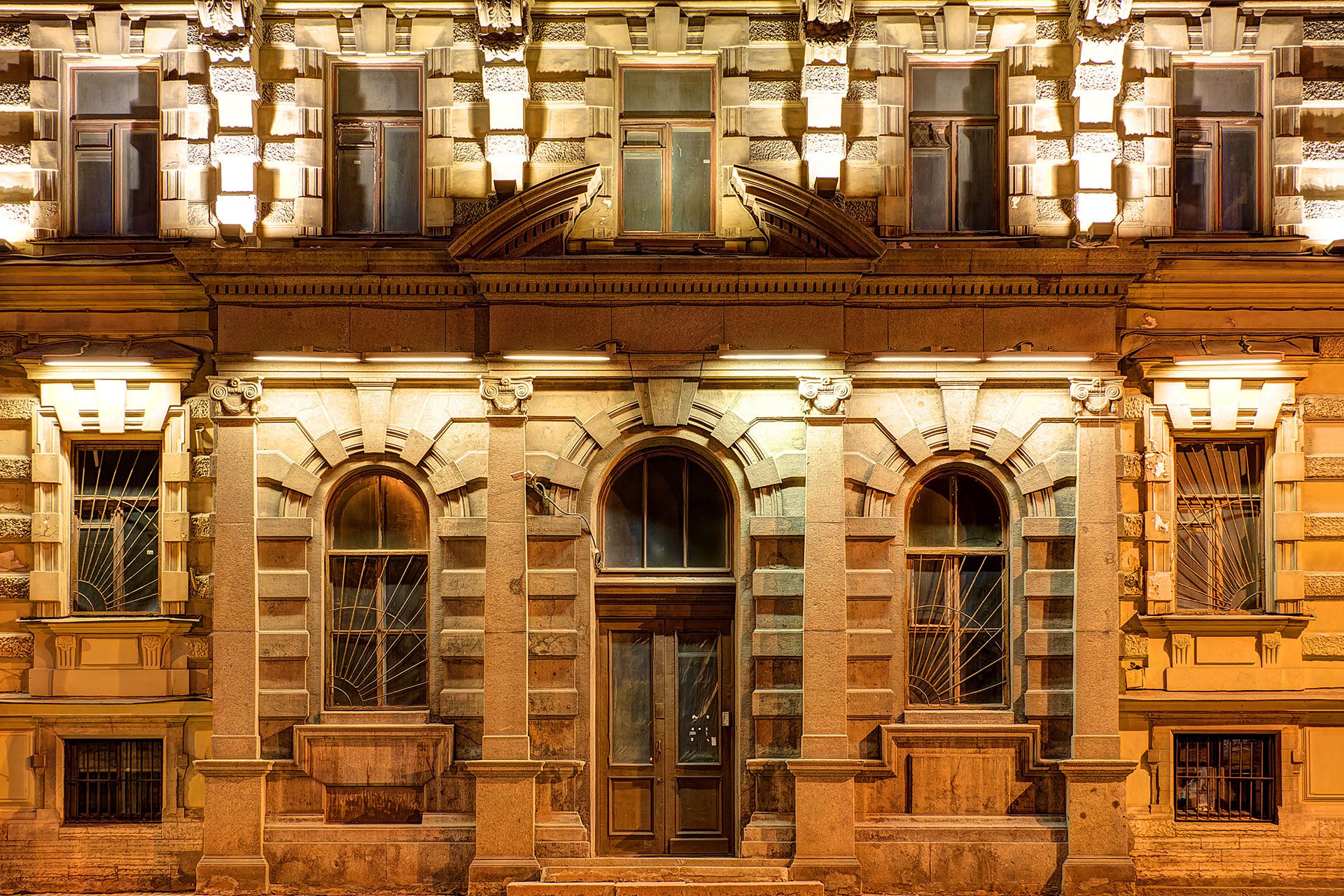

Jedi Nova Projector is a family of high-performance linear luminaires designed to deliver precise architectural illumination with exceptional flexibility. Available in surface-mounted configurations with either a compact rear driver box or an integrated side driver box, it adapts seamlessly to a wide range of façade, landscape, and architectural lighting applications.



With precision optical distributions, refined finishes, and advanced glare-control options, Jedi Nova Projector provides designers with the performance, reliability, and visual comfort needed to enhance architectural spaces.

  • dimensions Housing: 3.54"D x 2.17"W
    Length: 23.15", 34.17" or 45.75"
  • optics Spot, Wall Graze, Flood, Wall Wash, Oval Flood, Micro-Cell Optic or Opal
  • wattage (SP, FL & WG) 35W (23.15"L), 52W (34.17"L) or 70W (45.75"L)
  • wattage (WW & Oval FL) 23W (23.15”L), 34W (34.17”L) or 46W (45.75”L)
  • wattage (MC) 27W (23.15”L), 40W (34.17”L) or 53W (45.75”L)
  • wattage (Opal) 11W (23.15”L), 16W (34.17”L) or 21W (45.75”L)
  • lumens SP: 3063lm - 3725lm
    FL: 2968lm - 3608lm
    WW / Oval FL: 2355lm - 3931lm
    WG: 2725lm - 3725lm
  • color temperature 2200K
    2700K
    3000K
    3500K
    4000K
  • cri 80 CRI
  • voltage Universal Voltage 120-277V AC 50/60Hz
  • rating IP67, IP68, IP69 & IK07
  • power supply Integrated 4/1 smart driver (Non-Dimmable / 0-10V / Reverse Phase / Forward Phase) or DALI dimmable driver.
