LUCERA

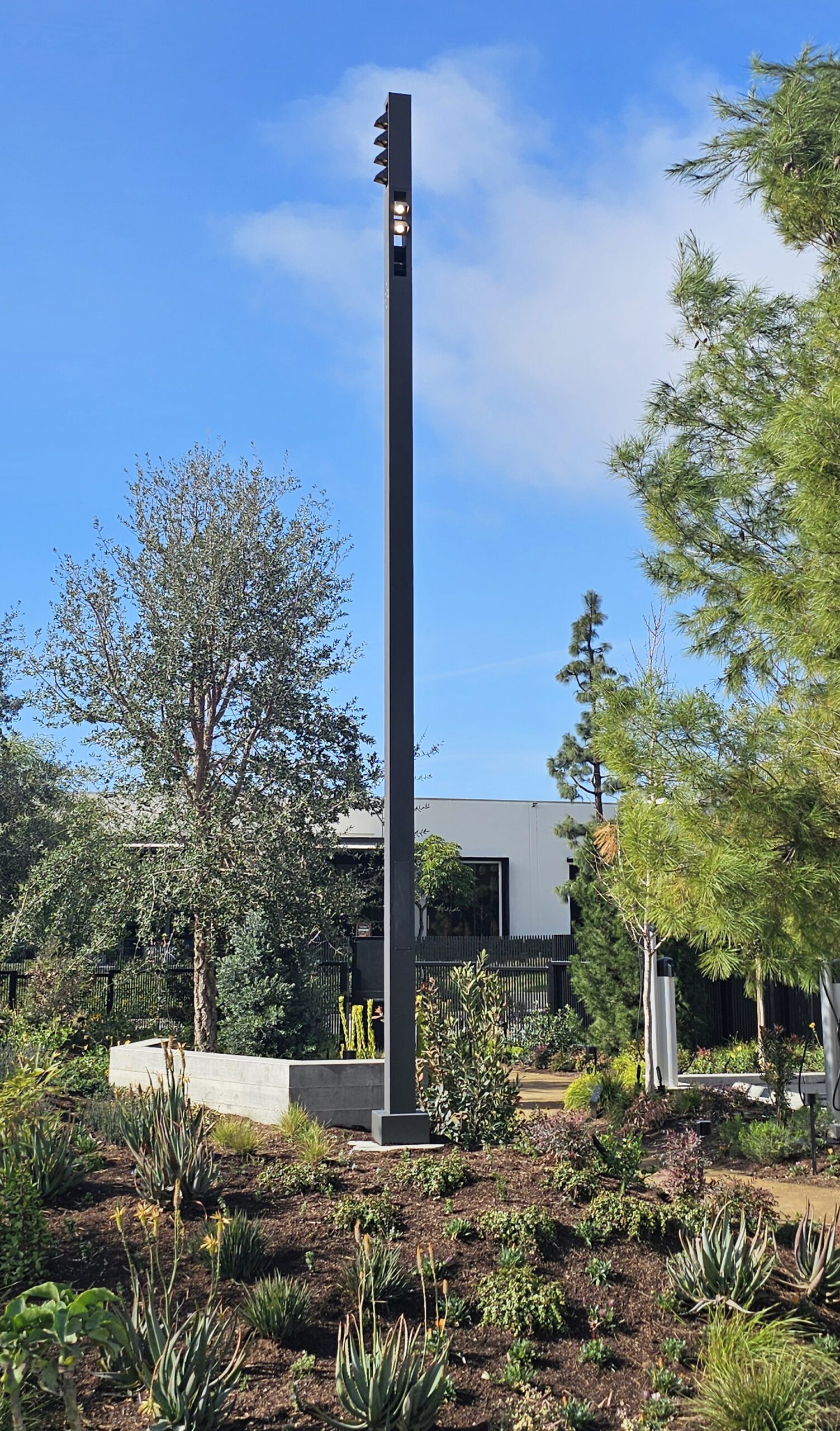

The LUCERA range was developed to provide an extremely flexible solution for illumination of modern urban spaces that can flow through exterior environments providing safety, efficiency, and versatility. LUCERA is a fully customizable modular system in height, optical distribution, and adjustability. This minimal 5.9″ square form factor is available in 2 pole heights, 1 bollard, 7 head styles with both fixed and adjustable positions, 9 optical distributions including Types I­–V for path and street lighting illumination, 4 static white color temperatures or Tunable White and RGBW dynamic lighting, and 6 standard finishes.



Also available in the LUCERA bollard configuration.

  • Dimensions 5.9" Square Pole Section
    Pole: 11.5ft H / 16.4ft H
    7 Head Options
  • wattage Per luminaire cube:
    12.4W Static White
    6.7W TW
    8.4W RGBW
  • lumens 6,090Lm Max
  • optics SP
    NFL
    FL
    MWFL
    Type I
    Type II
    Type III
    Type IV
    Type V
  • color temperature 2700K
    3000K
    3500K
    4000K
    TW 2700K – 5000K
    RGBW
  • voltage Universal Voltage 120-277V AC
  • ip rating IP66
    IK09
  • cri Ra80
  • Finishes
  • Driver Static White: Integral 0-10V driver
    TW & RGBW: Integral DMX 512
    • img
